Circle Cutting Machines

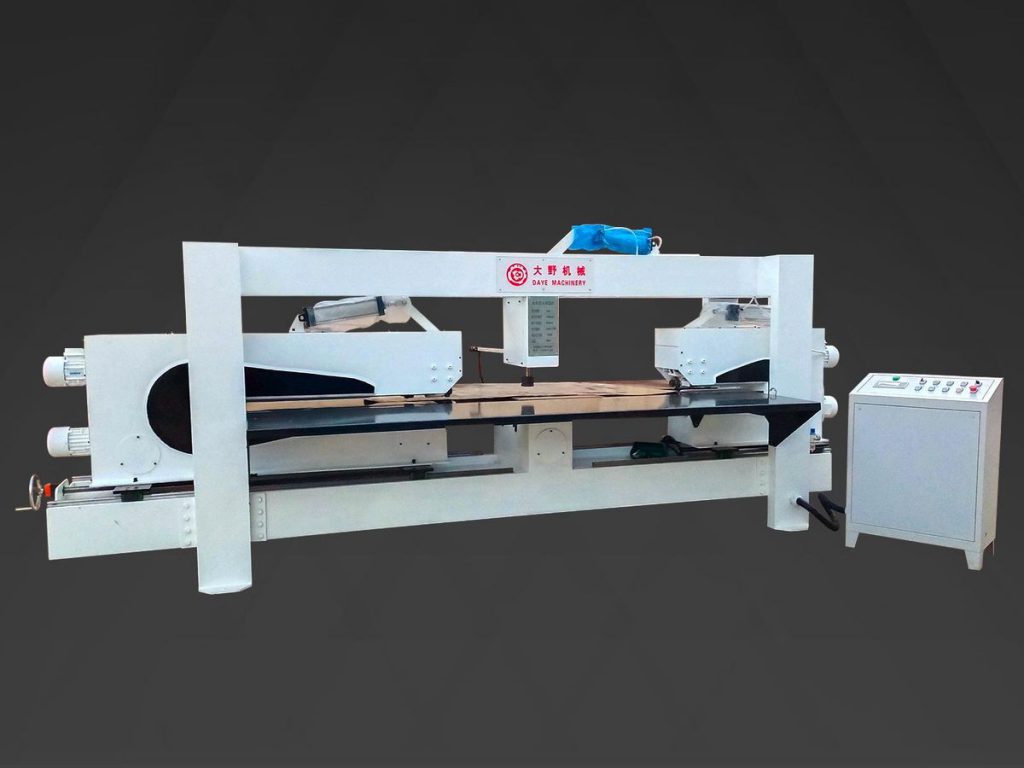

Double-Head Circle Cutting Machine
高精双头剪圆机
Two cutting heads, one pass — built for steel-coil side guard cutting.
- Twin heads for steel-coil side guard blanks
- Cutting speed 30 m/min
- Diameters up to Ø2000 mm
- 0.3–1.5 mm thin-gauge capacity
Models: GX1250-1.5 · GX1500-1.5 · GX2000-1.5
Specifications
Technical parameters
| Model | Cutting dia. (inner–outer) | Thickness | Speed | Motor | Machine size (mm) |
|---|---|---|---|---|---|
| GX1250-1.5 | Inner Ø350 – Outer Ø1250 mm | 0.3–1.5 mm | 30 m/min | 0.8–1.5 kW | 3600×800×2000 |
| GX1500-1.5 | Inner Ø350 – Outer Ø1500 mm | 0.3–1.5 mm | 30 m/min | 0.8–1.5 kW | 4100×1000×2000 |
| GX2000-1.5 | Inner Ø500 – Outer Ø2000 mm | 0.3–1.5 mm | 30 m/min | 0.8–1.5 kW | 4600×1000×2000 |
Voltage 380V as standard — export voltage can be configured for the destination market. Custom tooling available on request.
Applications
Where this machine works
Overview
Machine description
The double-head machine is a specialist for steel-coil side guards and wide thin-gauge discs: two cutting heads work the sheet in one pass, doubling through-put on long blanks at 30 m/min.
Three sizes run up to an impressive Ø2000 mm cutting diameter on 0.3–1.5 mm stock. The extended bed (up to 4600 mm) keeps long sheets supported through the cut.
