Circle Cutting Machines

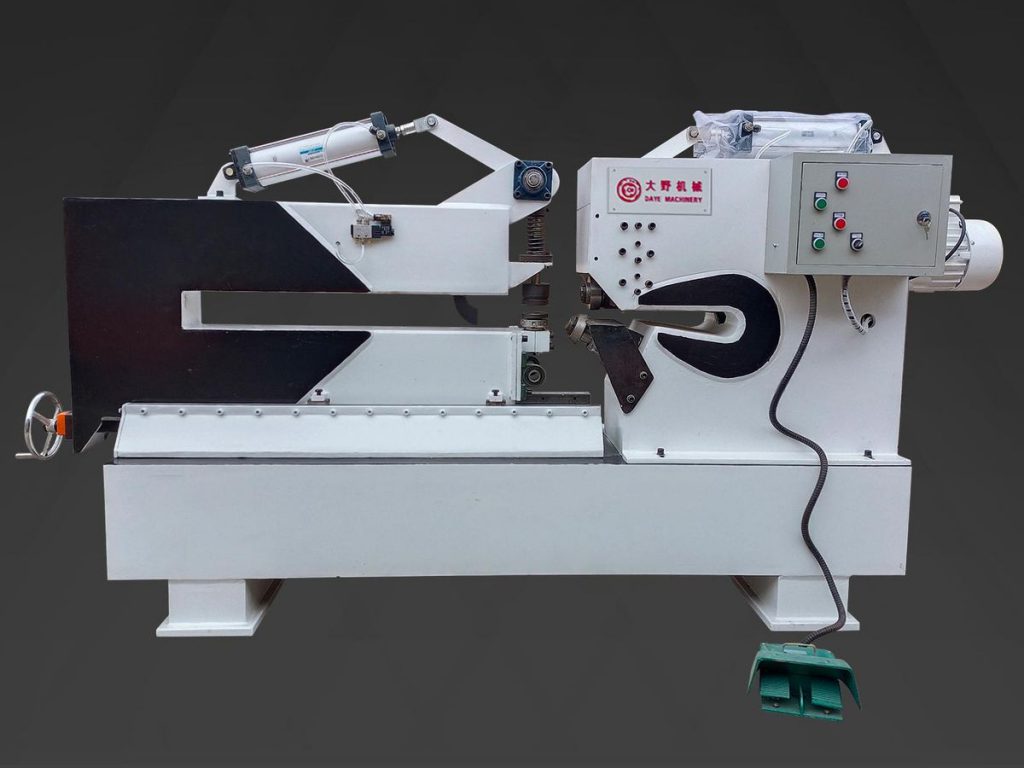

Outer Circle Cutting Machine
外圆剪圆机
Heavy-gauge outer-circle cutting purpose-built for dished-head production.
- Built for the dished-head industry
- Cuts 2–6 mm plate — the heaviest in the range
- 1.5–3 kW motor for thick-gauge work
- Cutting diameters from Ø800 to Ø1500 mm
Models: W800-6 · W1250-6 · W1500-6
Specifications
Technical parameters
| Model | Cutting dia. (inner–outer) | Thickness | Speed | Motor | Machine size (mm) |
|---|---|---|---|---|---|
| W800-6 | Inner Ø250 – Outer Ø800 mm | 2–6 mm | 10 m/min | 1.5–3 kW | 2300×800×1300 |
| W1250-6 | Inner Ø250 – Outer Ø1250 mm | 2–6 mm | 10 m/min | 1.5–3 kW | 3100×1000×1300 |
| W1500-6 | Inner Ø250 – Outer Ø1500 mm | 2–6 mm | 10 m/min | 1.5–3 kW | 3600×1000×1300 |
Voltage 380V as standard — export voltage can be configured for the destination market. Custom tooling available on request.
Applications
Where this machine works
Overview
Machine description
The outer circle cutting machine is engineered for the dished-head industry, where 2–6 mm plate must come out round and ready for spinning or pressing. The heavier 1.5–3 kW drive keeps cut quality stable at gauge.
Three diameter options from Ø800 to Ø1500 mm share the same rugged bed design, with cutting speed set at 10 m/min for thick plate. Tell us your head diameters and plate grades — we configure the machine accordingly.
