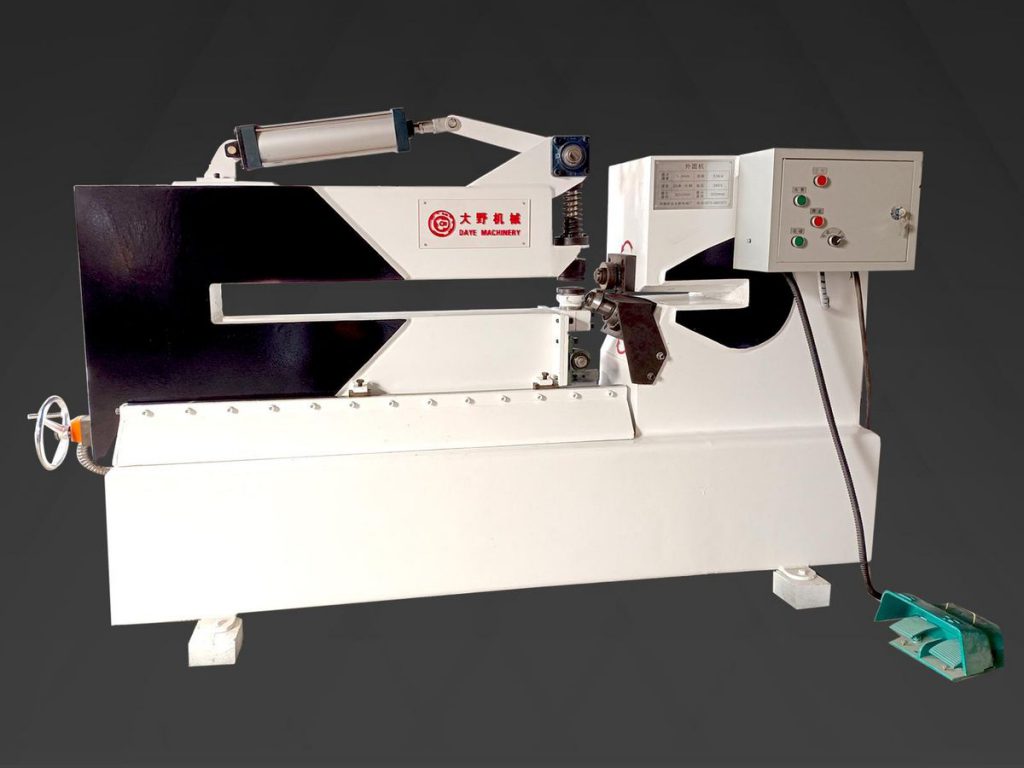

Inner Circle Cutting Machine
内圆剪圆机
Inner-circle cutting for filters, fans, end caps and pressure-vessel parts.
- Widely used for filters, fans, end caps and pressure vessels
- Cutting speed 30 m/min
- Diameters from Ø800 to Ø1500 mm
- 0.8–1.5 kW motor, 380V
Models: N800-3 · N1250-3 · N1500-3
Specifications
Technical parameters
| Model | Cutting dia. (inner–outer) | Thickness | Speed | Motor | Machine size (mm) |
|---|---|---|---|---|---|
| N800-3 | Inner Ø200 – Outer Ø800 mm | 0.3–3 mm | 30 m/min | 0.8–1.5 kW | 2600×800×2000 |
| N1250-3 | Inner Ø200 – Outer Ø1250 mm | 0.3–3 mm | 30 m/min | 0.8–1.5 kW | 3300×1000×2000 |
| N1500-3 | Inner Ø200 – Outer Ø1500 mm | 0.3–3 mm | 30 m/min | 0.8–1.5 kW | 3900×1000×2000 |
Voltage 380V as standard — export voltage can be configured for the destination market. Custom tooling available on request.
Applications
Where this machine works
Overview
Machine description
The inner circle cutting machine removes the center of the sheet cleanly — the everyday machine for filter makers, fan plants and end-cap production. Cutting runs at 30 m/min with the same bright-edge finish as the rest of the DAYE range.
Three cutting-diameter options from Ø800 to Ø1500 mm share a 0.3–3 mm sheet capacity. The taller frame accepts a center-drop table for blank removal — tell us your part mix and we will match the configuration.
