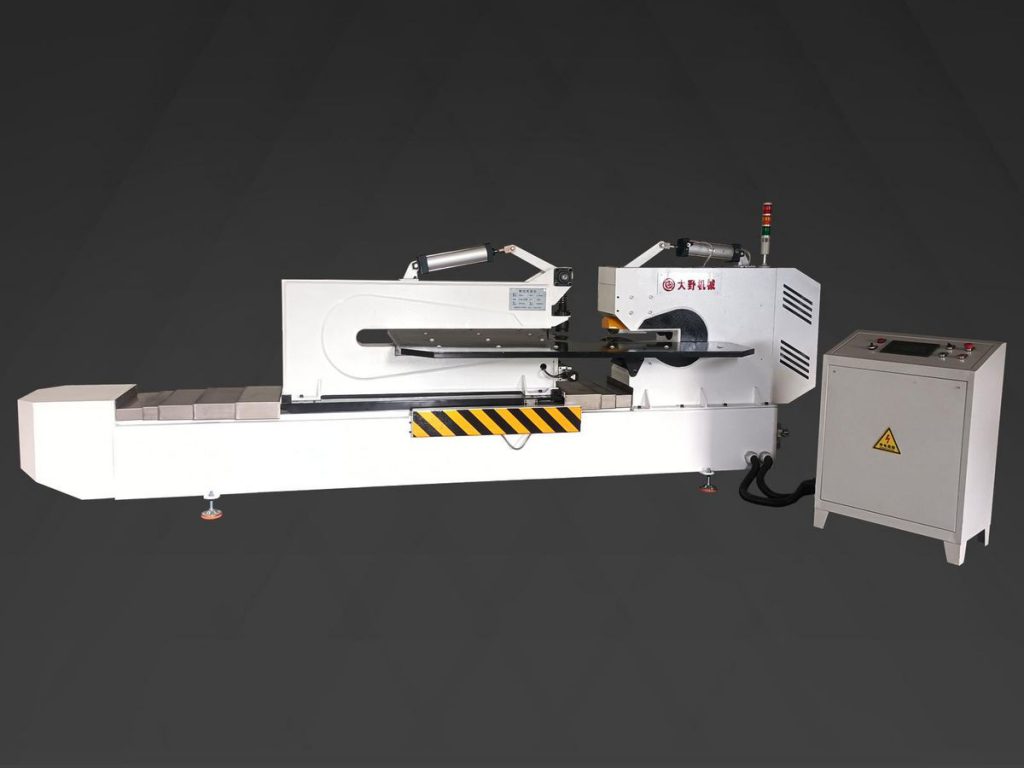

CNC Circle Cutting Machine
高精数控剪圆机
High-speed disc blanking for the silicon-steel industry — CNC positioning and cutting speeds up to 50 m/min.
- Designed for silicon-steel sheet cutting
- CNC series — cutting speed up to 50 m/min
- Clean, bright cut edges with minimal burr
- Cutting-diameter options from Ø800 to Ø1500 mm
- Foot-mounted anchor feet for stable, low-vibration cutting
Models: N800-1 · N1250-1 · N1500-1
Specifications
Technical parameters
| Model | Cutting dia. (inner–outer) | Thickness | Speed | Motor | Machine size (mm) |
|---|---|---|---|---|---|
| N800-1 | Inner Ø200 – Outer Ø800 mm | 0.3–3 mm | 50 m/min | 0.8–1.5 kW | 2600×800×1300 |
| N1250-1 | Inner Ø200 – Outer Ø1250 mm | 0.3–3 mm | 50 m/min | 0.8–1.5 kW | 3100×1000×1300 |
| N1500-1 | Inner Ø200 – Outer Ø1500 mm | 0.3–3 mm | 50 m/min | 0.8–1.5 kW | 3600×1000×1300 |
Voltage 380V as standard — export voltage can be configured for the destination market. Custom tooling available on request.
Applications
Where this machine works
Overview
Machine description
The CNC circle cutting series is built for the silicon-steel industry, where laminate discs must come off the machine round, flat and burr-free. Numerical control positions each cut so operators load, clamp and start — the machine takes the disc through to a finished blank at up to 50 m/min.
Three cutting-diameter options cover blanks from Ø800 to Ø1500 mm, all driven by 0.8–1.5 kW motors on a 380V supply. The machine bed carries anchor feet for level, low-vibration cutting, and the working width accepts coil-cut sheets common in transformer and motor plants.
